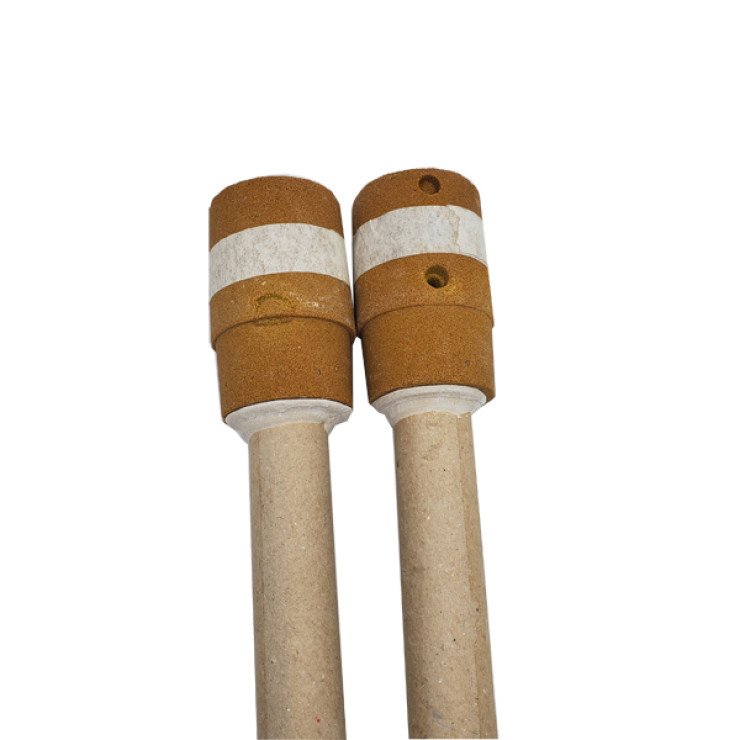

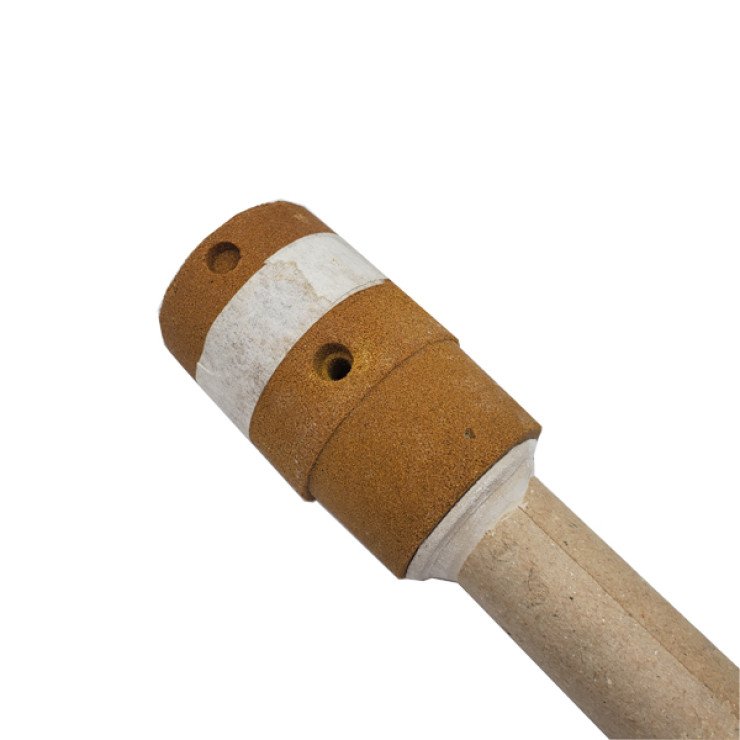

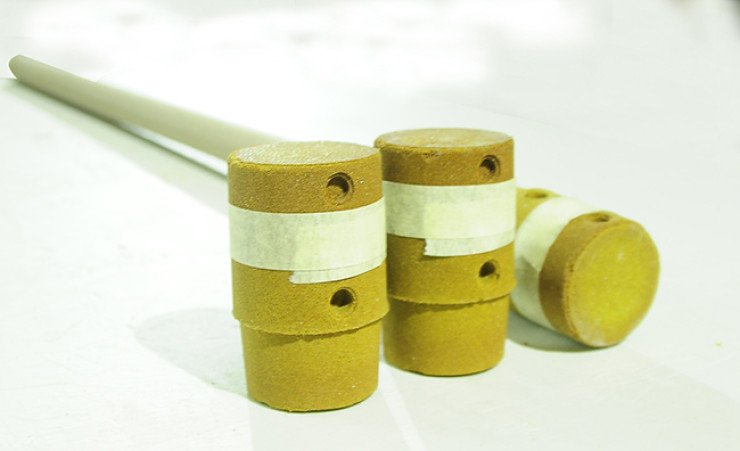

Molten Iron Sampler

Molten Iron Sampler

1.      Application scope:

The samplers of our company have a wide range of applications, for sampling from hot metal liquid

which need deoxidation or not. It is suitable for the quick analysis of carbon, manganese, sulfur, phosphorus and other chemical ingredients, and hydrogen, oxygen and other gases.

2.      Working principle:

When a sampler was inserted into the hot metal liquid, under the static pressure, the hot metal liquid breaks the slag protective layer, through the sampler inlet, into the sampling chamber automatically.

Then the alloying element content in the steel can be analysed by spectral analysis.

3.      Features

Taking samples only costs a short time, and the operation is easy. Our products can help you to improve the quality of steel, as well as reduce waste ratio.

4.      Classification:

(1) Direct insertion type.

(2) Decanting type.

5.      Technical parameters of sampler

1) MATERIALS
Paper tube: Length can be 800/900/1000/1200/1500mm or customized
Slag Cap: Steel/Aluminium
Size of sample: Round. Single thickness
For steel         a)34*12mm (Outer diameter*Thickness)
                          b) 30*15mm (Outer diameter*Thickness)
For iron         c)  34*12mm (Outer diameter*Thickness)
Killing Agent: Zirconium/Aluminium/No Killing

2) USE

Sampling time: From 3 to 5 seconds

Max dipping: 6 seconds

Humidity of carton: 12% max at shipment

3) WARNING

If tubes are humid, there is the risk of light projections during the immersion.

It is suggested the use of personal body protections.

4) STORAGE

Conditions: Stock the samplers in a dry, covered place.
