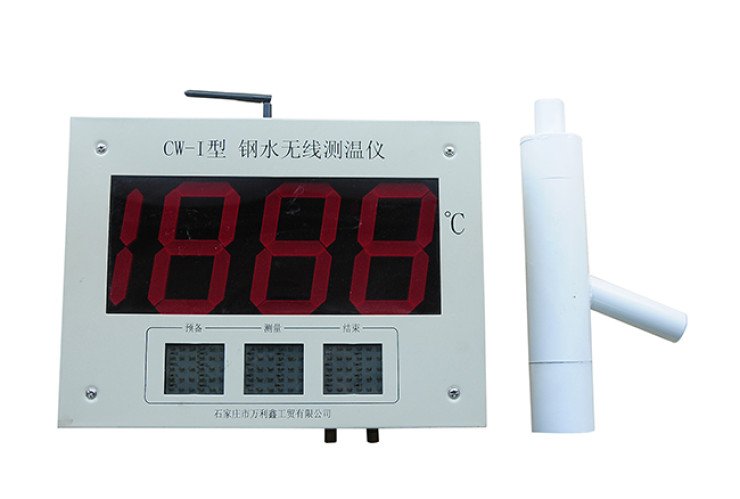

Technical indexes of CW-1 wireless temperature indicator
1. Displayed temperature range: -99℃-1999℃
2. Communication frequency to be set: 0-F, 16 in total
3. Operating conditions:
Temperature: -20℃-50℃; relative humidity≤85%
4. Storage conditions: temperature: -20℃-70℃; relative humidity≤95%
5. Power supply: AC220V,50HZ
6. Overall dimension: 380mm*280mm*110mm(length*width*height)
7. External Outputs: RS485 output can be connected to computer and large
display screen
4-20mA current output can be connected to computer and large display screen
BCD code output can be connected to computer and large display screen
×
